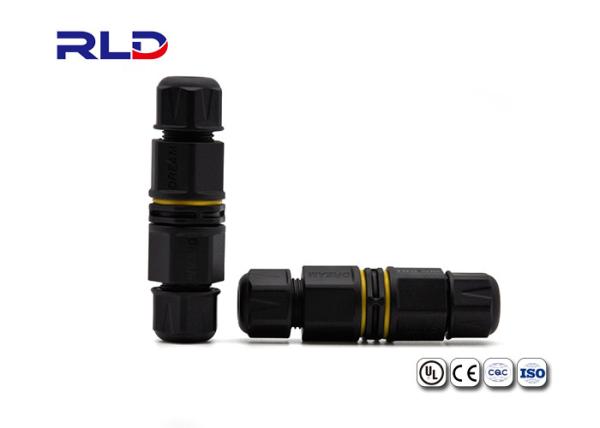

Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector

    Buy cheap Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector from wholesalers

    Buy cheap Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector from wholesalers
    • Buy cheap Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector from wholesalers
    • Buy cheap Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector from wholesalers
    • Buy cheap Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector from wholesalers

    Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-C05
    Certification : UL/CE/CQC
    Price : Negotiable
    Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C
    Supply Ability : 100000pcs/month
    • Product Details
    • Company Profile

    Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector

    Straight 2 3 Pin 10mm IP67 IP68 Waterproof Light Connector


    Quick Detail Of Waterproof Led Connectors

    1) Advanced structure: Screw threaded

    2) Mutiple pin: 2pin/3pin/4pin

    3) Connector type : Male / Female

    4) Colours:Black


    Feature Of Waterproof Led Connectors

    1. Nut type docking assembly, simple to use and convenient installation;

    2. Integrating current and signal transmission in one of the multifunctional integrated circular connector;

    3. The material of products in nylon fiber grealy improves product durability and safety;

    4. The pins with gold-plated ensure the conducting performance's stability and security;

    5. Combined structure, the connector can be parted into different components. Customers can just purchase the connector, then assemble and weld it according to the demand.

    6. Mainly used for outdoor display screens and other upscale products.


    Specification Of Waterproof Led Connectors

    Product NameWaterproof Led ConnectorsCertificationUL,CQC,CE
    Current Rating20AGenderAssembly Connector
    Voltage Rating250V ACPin Number2pin/3pin/4pin
    Cable Size2pin: <2.5mm2Cable Range6-10mm
    Cable Size3pin: <1.5mm2Connecting ModeScrew Threaded
    External Mold MaterialPVC / TPUIP LevelIP68
    Plug/unplug durability1500 timesLength0.5M/1M/2M/5M/10M/20M/Customized

    Technical date

    Pins numberRated CurrentRated VoltageContact ResistanceInsulation ResistanceIP LevelCable SpecificationsCable Range
    220A250VAC10mΩ200MΩIP68<1.5mm26-10mm
    320A250VAC10mΩ200MΩIP68<1.5mm26-10mm
    415A250VAC10mΩ200MΩIP68<1.5mm26-10mm


    Application Of Waterproof Led Connectors

    1. LED Street Light

    2. LED Lighting System

    3. LED Module


    What kind of waterproof Connector can we provide

    M6 Waterproof Connector

    M8 Waterproof Connector

    M10 Waterproof Connector

    M12 Waterproof Connector

    M15 Waterproof Connector

    M16 Waterproof Connector

    M20 Waterproof Connector

    M25 Waterproof Connector

    M28 Waterproof Connector


    Our Advantages

    1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

    2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

    3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.


    Application of Waterproof Led Connectors
