    12 Volt IP65 Waterproof Power Cable Connector Material For Electric Bike

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-A09
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 1000000 pieces per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

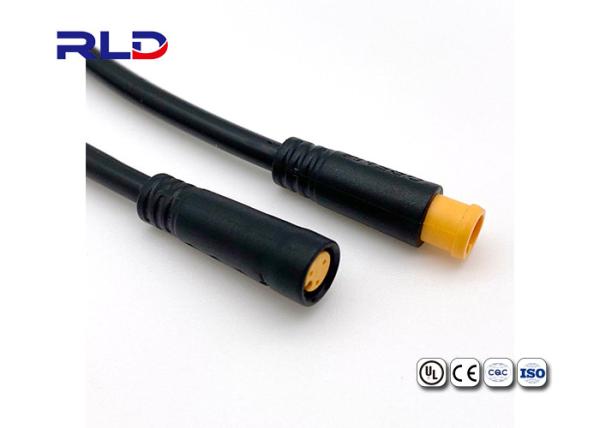

    12 Volt IP65 Waterproof Power Cable Connector Material For Electric Bike

    12 Volt IP65 Waterproof Power Cable Connector Material For Electric Bike


    1. Basic information

    • Direct plug-in assembly, simple in using, convenient in installation;
    • For low voltage, low current of signal products tailored;
    • The plug with compact structure and dainty appearance, is more suitable for product needs;
    • Innovation and development in 2018, the new generation of electric bicycle signal lines;
    • Mainly used for electric bicycle accessories and other signal lines.


    2. Other Details


    • Operating Temperature : PVC: 0℃~+80℃ | TPU : -40℃~+105℃
    • Plug/Unplug durability : 1500times
    • Connection Mode : Direct Plug-in

    3. Parameters


    Pins number2Pin/3Pin/4Pin/5Pin/6Pin
    Rated current1.5A ~ 2.0A
    Rated voltage40V AC ~ 60V AC
    Contact resistance10mΩ
    Insulation resistance100MΩ
    IP-CodeIP65
    Cable Specifications0.2~0.3mm2
    Cable Range0-4mm
    Operating temperaturePVC:0℃ ~ +80℃; TPU: -40℃ ~ +105℃

    4. Questions & Answers


    Q1: Can I have a sample for test?

    Yes, sample order is welcomed, the lead time will be 3-5 working days acoording to your request.


    Q2: How about the lead time?

    Sample order need 3-5 working days, mess order need 15-20 working days.


    Q3: Do you have certificates about the waterproof connectors?

    Yes, we have got UL, CE for all waterproof connectors.


    Q4: What payment can you accept?

    We are appreciate that you can pay via T/T, and of course you can pay by L/C, Western Union, Paypal.


    Q5: Is that OK to print our Logo on your product and package?

    Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you.


    Q6: Are your company a factory? Where is your factory?

    Yes, our company is a factory, we located in Shenzhen.


    Q7: Do you accept OEM & ODM service?

    Yes, we accept OEM service. We will produce according to your requirment. ODM are also welcomed. Our engineers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.


    Q8: How much does it cost to my country?

    The freight will be given by fright company based on your Gross weight and CBM.


    5. Product Details
