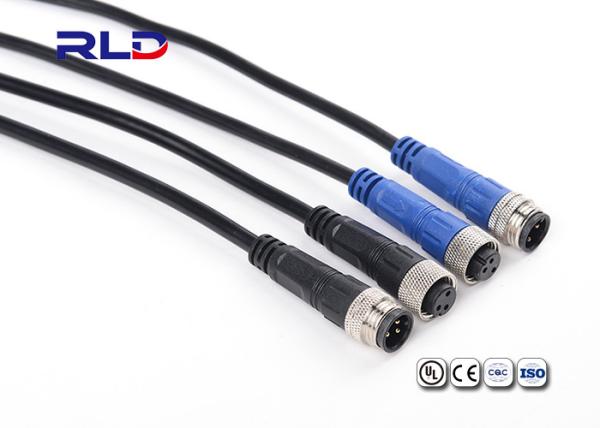

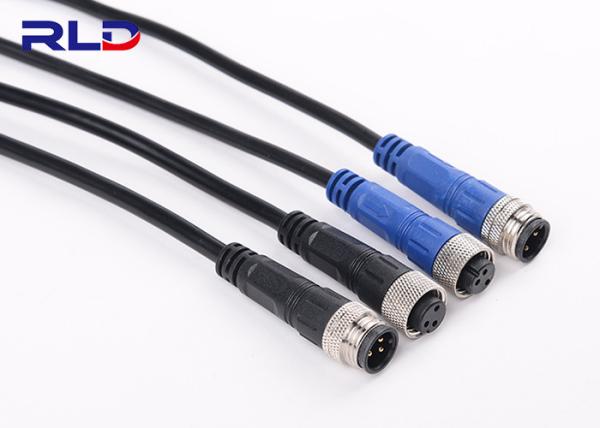

1. Metal screw threaded locking connector, simple in using, robust
and durable;
2. Specially designed for low-voltage, weak-current products;
3. Small size, beautiful appearance, high performance, is more
suitable for high-end products.
Other Parameters
Operating Temperature : PVC 0℃~+80℃
Plug/Unplug durability : 1500times
Connection Mode : Screw Threaded
Parameters
| Pins Number | 2pin/3pin/3+3pin/3+6pin/10pin/12pin |
| Rated Current | 10A/8A/10+2A/2A |
| Rated Voltage | 60V AC ~ 250V AC |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100MΩ |
| Protection Level | IP67 |
| Cable Specification | 0.3mm² / 0.5mm² / 1.0mm² |
| Cable Range | 0-8mm |
FAQ
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working
days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working
days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for DL-A02 series , CE for all waterproof
connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can
pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally ,
and confirm the design firstly based on the sample that we send to
you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your
requirment .ODM are also welcomed . Our engineers have more than 10
years experience for waterproof connector industry . we provide our
best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross
weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m
,5m , 10m , 50m , 100m and so on , will produce according to your
detailed requirement .
Product Details
D09
Specification.pdf
