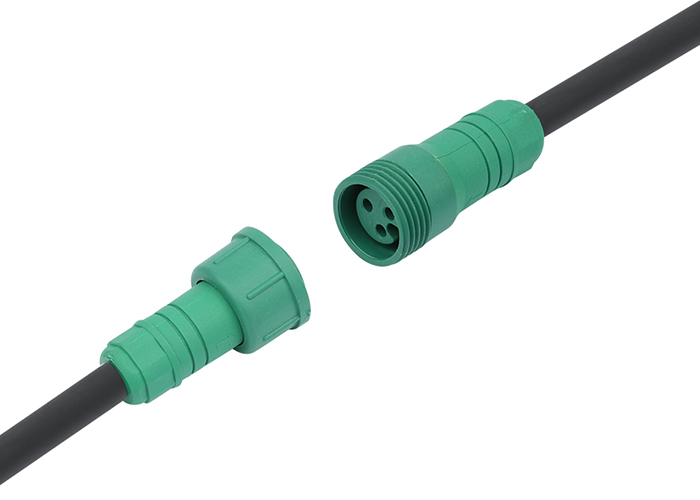

    Male Female Waterproof 3Pin Cable Wire Connector with Extension Cable

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-D13
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 100000pieces/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Male Female Waterproof 3Pin Cable Wire Connector with Extension Cable


    Male Female Waterproof 3Pin Cable Wire Connector with Extension Cable


    Product Description

    1. Screw threaded assembly, simple in using, convenient in installation;
    2. Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, anti
    explosion, and corrosion;
    3. General products for Benchmarking Semiconductor Lighting Enterprises in Guangdong.

    Other Parameters


    Operating Temperature : PA66 : -40℃~+105℃

    Plug/Unplug durability : 1500times

    Connection Mode : Screw Threaded


    Date Sheet


    Connecting ModeScrew Threaded
    Cable Specification1.5mm2 / 20 - 14AWG
    Cable Range0-9mm
    Rated Current10A
    Rated Voltage250V AC
    Protection LevelIP67
    Contact Resistance10mΩ
    Insulation Resistance200MΩ
    Operating TemperaturePA66 : -10℃~+105℃

    Parameters


    SizeMale : Φ15.5*45mm Female : Φ18.3*45.8mm
    Male Pin DiameterΦ2.35mm
    Male Pin MaterialCopper/Copper Alloy (Gold plating/Nickel plating)
    Female Pin MaterialCopper/Copper Alloy (Gold plating/Nickel plating)
    Over-Mold MaterialPA66
    Insulator MaterialPA66
    Wire Specifications20AWG---14AWG
    Wire DiameterΦ4.0-Φ9.0
    Protective LevelIP67

    Payment Terms


    1. 100% T/T in advance .

    2. T/T , Paypal , Western Union , L/C .


    Questions & Answers


    Q1 : Can I have a sample for test ?

    Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .


    Q2 : How about the lead time ?

    Sample order need 3-5 working days , mess order need 15-20 working days .


    Q3 : Do you have certificates about the waterproof connectors ?

    Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .


    Q4 : What payment can you accept ?

    We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .


    Q5 : Is that OK to print our Logo on your product and package ?

    Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .


    Q6 : Are you a factory ? Where is your factory ?

    Yes , we are a factory , we located in Shenzhen .


    Q7 : Do you accept OEM & ODM service ?

    Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.


    Q8 : How much does it cost to my country ?

    The freight will be given by fright company based on your Gross weight and CBM .


    Q9 : Can I order 100m cable for 1pc waterproof connector ?

    Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
