    IP67 Waterproof Cable Connector 2 3 Pin Male Female Connector

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-D13
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 100000pieces/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

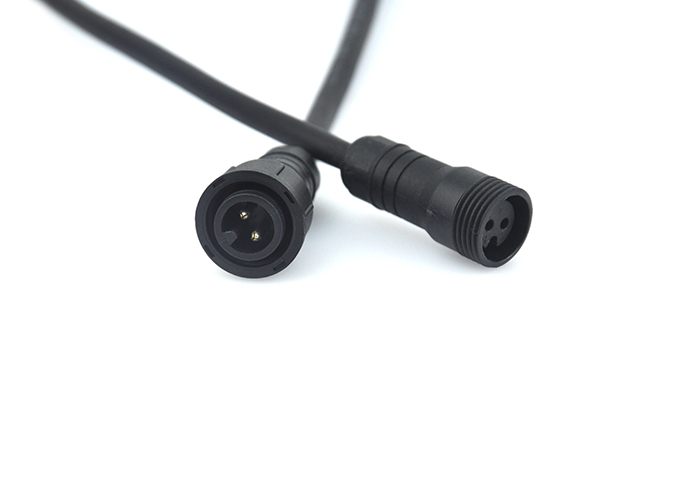

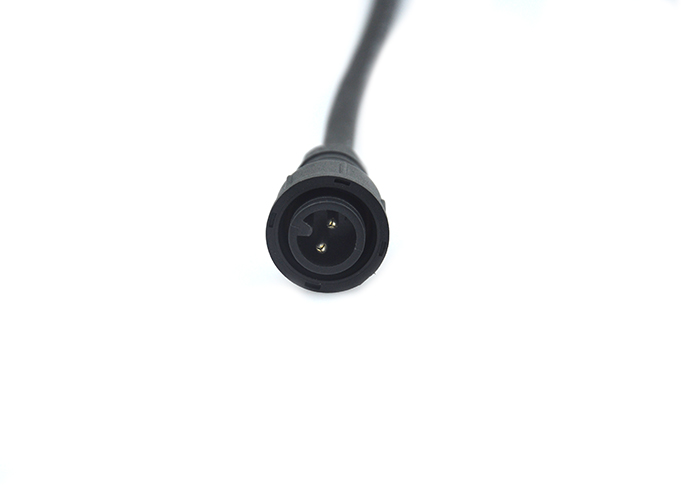

    IP67 Waterproof Cable Connector 2 3 Pin Male Female Connector

    IP67 Waterproof Cable Connector 2 3 Pin Male Female Connector


    Product Description


    This Waterproof IP67 Connector owns nut type docking assembly. It is simple to use and convenient to install. The waterproof connectors of our company is the general products of Guangdong Province Semiconductor Lighting Bench marking System Enterprise. The material of products in nylon fiber grealy improves product durability and safety. It is Mainly used for LED lighting power cables' connection and any other power cables.


    Details:

    Male Size : Φ15.5*45mm

    Female Size : Φ18.3*45.8mm

    Contact Cores : 2pin / 3pin

    Male Pin Diameter : Φ2.35mm

    Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

    Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

    Over-Mold Material : PA66

    Insulator Material : Nylon, Temperature-resistance 260℃

    Wire Specifications : 20AWG---14AWG

    Wire Diameter : Φ4.0-Φ9.0

    Protective Level : IP68

    Working temperature : -40℃~ 125℃

    Rated Current : 10-12A

    Rated Voltage : 250V

    Test Voltage : 1000V~1500V

    Contact Resistance : 10 MΩ

    Insulation Resistance : 200 MΩ


    Data Sheet


    Connecting ModeScrew Threaded
    Cable Specification1.5mm2 / 20 - 14AWG
    Cable Range0-9mm
    Rated Current10A
    Rated Voltage250V AC
    Protection LevelIP67
    Contact Resistance10mΩ
    Insulation Resistance200MΩ
    Operating TemperaturePA66 : -10℃~+105℃

    Why Choose Us?


    1. We are the leading Manufacturer in the waterproof connector field in China.


    2. 100% QC inspection before delivery .


    3. Best quality & best service with a competitive price.at the same price,our quality is the best and at the same quality,our price is the best.


    4. Advanced production equipment & strong technical strength ensure high quality and competitive products.


    5. We are powerful factory in China and our products are exported to many countries and a lot of good review from customers.


    Questions & Answers


    Q1 : Can I have a sample for test ?

    Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .


    Q2 : How about the lead time ?

    Sample order need 3-5 working days , mess order need 15-20 working days .


    Q3 : Do you have certificates about the waterproof connectors ?

    Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .


    Q4 : What payment can you accept ?

    We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .


    Q5 : Is that OK to print our Logo on your product and package ?

    Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .


    Q6 : Are you a factory ? Where is your factory ?

    Yes , we are a factory , we located in Shenzhen .


    Q7 : Do you accept OEM & ODM service ?

    Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.


    Q8 : How much does it cost to my country ?

    The freight will be given by fright company based on your Gross weight and CBM .


    Q9 : Can I order 100m cable for 1pc waterproof connector ?

    Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
