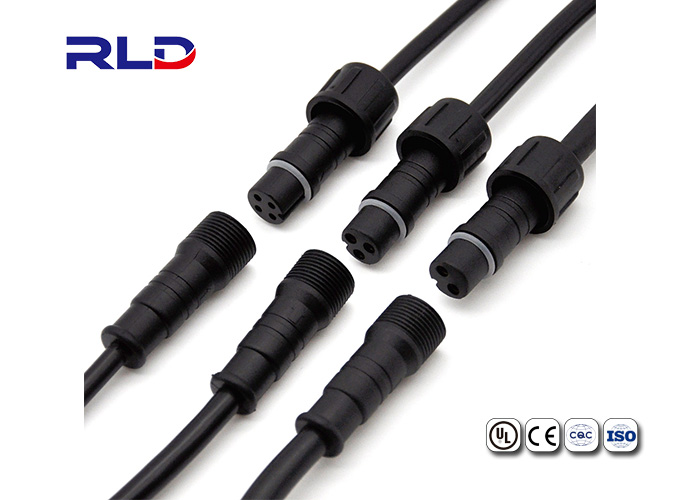

2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

    Buy cheap 2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female from wholesalers

    Buy cheap 2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female from wholesalers
    • Buy cheap 2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female from wholesalers
    • Buy cheap 2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female from wholesalers
    • Buy cheap 2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female from wholesalers

    2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-D04
    Certification : UL/CE/CQC
    Price : Negotiable
    Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C
    Supply Ability : 100000pcs/month
    • Product Details
    • Company Profile

    2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female

    2 3 4 Pin IP68 60VAC Waterproof LED Wire Connector Male To Female


    Quick Detail Of Waterproof Cable Connectors

    1) Advanced structure: Screw threaded

    2) Mutiple pin: 2pin/3pin/4pin

    3) Connector type : Male / Female

    4) Colours:Black


    1. Screw threaded locking system, simple in using, convenient in installation;
    2. Specially designed for low-voltage, weak-current products;
    3. Gold-plated pins are used to ensure lasting and stable conductivity, safe and reliable;
    4. With compact structure, small and exquisite shape, the plug is more suitable for product needs;


    Mechnical Property

    Pins Number2Pin 3Pin 4Pin
    Male / Female Contact MaterialCopper/ Copper Alloy (Gold Plating /Nickel Plating)
    Over-Mold MaterialPVC
    Cable Range0-7.2mm
    Cable Specifications1.0mm²,0.75mm²
    Connection ModeScrew threaded
    Protection DegreeIP67
    Operating TemperaturePVC : 0℃-80℃
    Plug/ Plug Durability1500

    Electrical Property

    Rated Current8A
    Rated Voltage60V
    Test Voltage1000V
    Contact Resistance10mΩ
    Insulation Resistance100MΩ


    Application Of Waterproof Cable Connectors

    1. Electric Bicycles

    2. Ebike Motor

    3. E-Scooter

    4. LED Street Light


    Our Advantages

    1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

    2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

    3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.


    Application of Waterproof Cable Connectors

    D04 Specification.pdf
