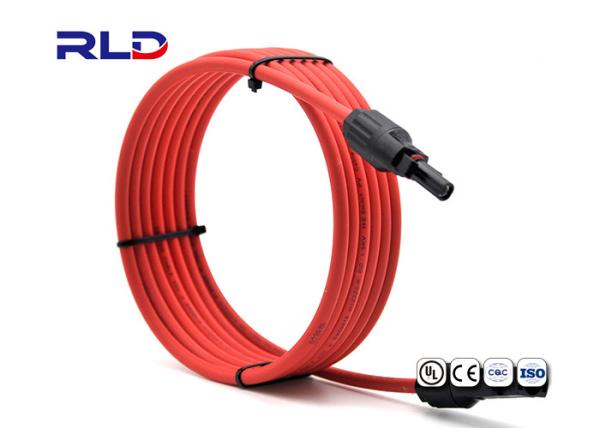

    Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-S01
    Certification : UL/CE/CQC
    Price : Negotiable
    Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C
    Supply Ability : 100000pcs/month
    • Product Details
    • Company Profile

    Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel

    Ip67 30A 1000V Waterproof Cable Connector For PV Cable Solar Panel


    Quick Detail Of Solar Panel Connector


    Simple on-site processing
    Mating safety provided by keyed housings
    Multiple plugging and unplugging cycles
    Accomodates PV cables with different insulation diameters
    High current carrying capacity
    CE TUV and ISO approved


    Solar Panel connector is a connecting device for connecting solar panel circuits. It can connect various groups of circuits safely
    and quickly. It is dustproof, waterproof, anti-aging, UV resistant, light and easy to use, easy to install, safe and long-lasting.
    Life and other characteristics.
    The solar panel connector is self-locking and consists of the following components:
    1) Connector plastic body: the material used is PPO
    2) Waterproof colloid: the material used is silica gel
    3) Contact conductor: the material used is copper tin


    Technical Data of Solar Panel Connector


    Product NameSolar Panel Connector
    Rated Current50A (2.5-6mm²)
    Degree of ProtectionIP68
    Rated Voltage1500V/1000V DC
    Flame ClassUL94-V0
    Test Voltage6000V (50Hz,1min)
    Safety ClassII
    Overvoltage CategoryCATIII

    Suitable ClassOD4.5-8.5 (2.5-6.0mm²)
    Contact Resistance<0.5mΩ/km
    Insertion Force / Withdrawal Force≤50N/≥50N
    Contact MaterialCopper (Class5, Tin Plated)
    Connecting SystemCrimp Connection
    Insulation MaterialPPO
    Temperature Range-40℃ ~ +85℃

    Application of Waterproof Cable Connectors
