    3 Pin Plug Waterproof LED Connectors Male Female Cable Wire Connector

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-D13
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 100000pieces/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

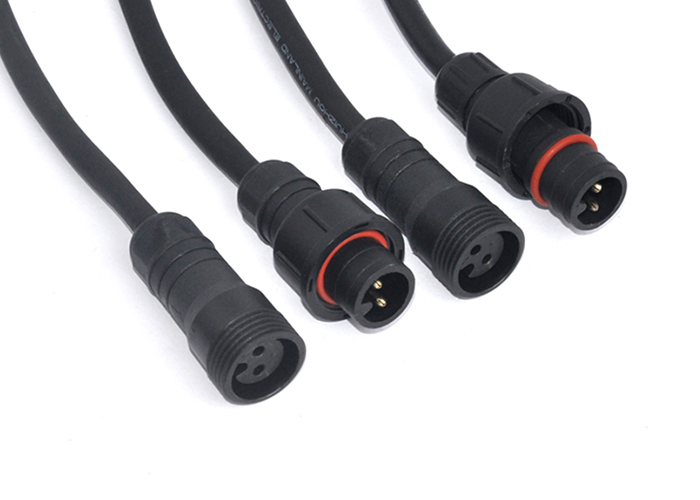

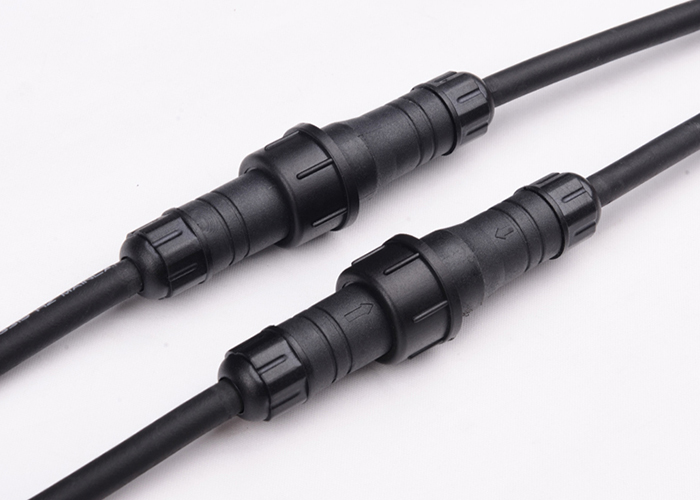

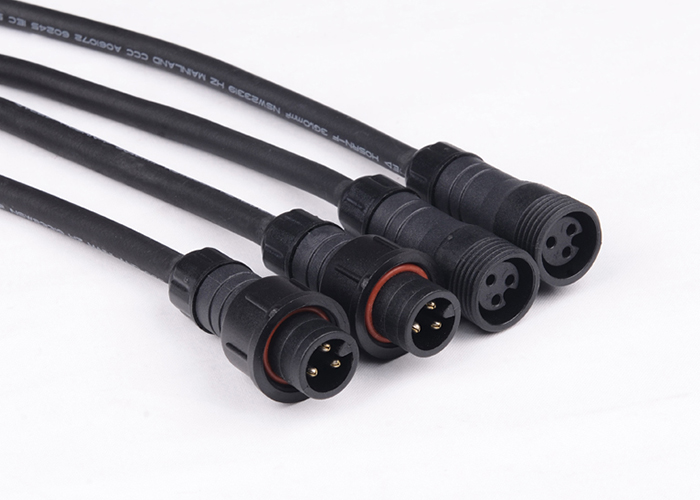

    3 Pin Plug Waterproof LED Connectors Male Female Cable Wire Connector

    3 Pin Plug Waterproof LED Connectors Male Female Cable Wire Connector

    Product Description

    Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like electric bike and auto.


    Other Parameters

    Operating Temperature : PA66 : -40℃~+105℃
    Plug/Unplug durability : 1500times
    Connection Mode : Screw Threaded


    Data Sheet

    Connecting ModeScrew Threaded
    Cable Specification1.5mm2 / 20 - 14AWG
    Cable Range0-9mm
    Rated Current10A
    Rated Voltage250V AC
    Protection LevelIP67
    Contact Resistance10mΩ
    Insulation Resistance200MΩ
    Operating TemperaturePA66 : -10℃~+105℃



    Parameters

    SizeMale : Φ15.5*45mm Female : Φ18.3*45.8mm
    Male Pin DiameterΦ2.35mm
    Male Pin MaterialCopper/Copper Alloy (Gold plating/Nickel plating)
    Female Pin MaterialCopper/Copper Alloy (Gold plating/Nickel plating)
    Over-Mold MaterialPA66
    Insulator MaterialPA66
    Wire Specifications20AWG---14AWG
    Wire DiameterΦ4.0-Φ9.0
    Protective LevelIP67



    Questions & Answers


    Q1 : Can I have a sample for test ?
    Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .

    Q2 : How about the lead time ?
    Sample order need 3-5 working days , mess order need 15-20 working days .

    Q3 : Do you have certificates about the waterproof connectors ?
    Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .

    Q4 : What payment can you accept ?
    We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .

    Q5 : Is that OK to print our Logo on your product and package ?
    Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .

    Q6 : Are you a factory ? Where is your factory ?
    Yes , we are a factory , we located in Shenzhen .

    Q7 : Do you accept OEM & ODM service ?
    Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.

    Q8 : How much does it cost to my country ?
    The freight will be given by fright company based on your Gross weight and CBM .

    Q9 : Can I order 100m cable for 1pc waterproof connector ?
    Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .

    Product Details


    Nut type docking assembly, simple to use and convenient installation
    The general products of Guangdong Province Semiconductor Lighting Bench marking System Enterprise
    The material of products in nylon fiber grealy improves product durability and safety.
    Mainly used for LED lighting power cables' connection and any other power cables.
