Brand Name : | Realeader |
Model Number : | DR-D13 |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, D/P, T/T, Western Union, MoneyGram , Paypal |
Supply Ability : | 100000pieces/Month |
Delivery Time : | 5-8 working days |

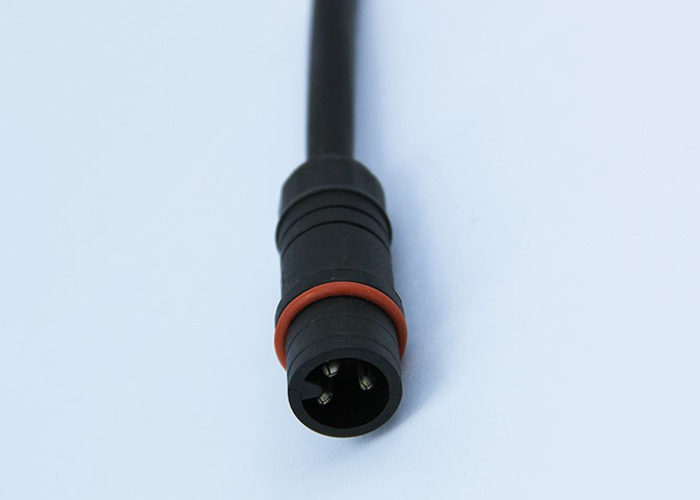

250V AC Waterproof Cable Connector has two connection modes of the solder type and thread type. It's very easy and simple to operating, small bulk, light weight complete specification. It is applicable for the connection of the small-size sebsir, the electronic equipments, cable can have free blind insertion . Morever, its features has good flexibility anti-vibration resistant,waterproof ect. It resists the salt mist and electro-magnetic disturbance. It have multiple Poles for customer to option according defferent specific requirements.
Other Parameters
Operating Temperature : PA66 : -40℃~+105℃
Plug/Unplug durability : 1500times
Connection Mode : Screw Threaded
Data Sheet
Connecting Mode | Screw Threaded |
Cable Specification | 1.5mm2 / 20 - 14AWG |
Cable Range | 0-9mm |
Rated Current | 10A |
Rated Voltage | 250V AC |
Protection Level | IP67 |
Contact Resistance | 10mΩ |
Insulation Resistance | 200MΩ |
Operating Temperature | PA66 : -10℃~+105℃ |
Parameters
Size | Male : Φ15.5*45mm Female : Φ18.3*45.8mm |
Male Pin Diameter | Φ2.35mm |
Male Pin Material | Copper/Copper Alloy (Gold plating/Nickel plating) |
Female Pin Material | Copper/Copper Alloy (Gold plating/Nickel plating) |
Over-Mold Material | PA66 |
Insulator Material | PA66 |
Wire Specifications | 20AWG---14AWG |
Wire Diameter | Φ4.0-Φ9.0 |
Protective Level | IP67 |
Product Details
Nut type docking assembly, simple to use and convenient
installation
The general products of Guangdong Province Semiconductor Lighting
Bench marking System Enterprise
The material of products in nylon fiber grealy improves product
durability and safety.
Mainly used for LED lighting power cables' connection and any other
power cables.
Male Size : Φ15.5*45mm
Female Size : Φ18.3*45.8mm
Contact Cores : 2pin / 3pin
Male Pin Diameter : Φ2.35mm
Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel
plating)
Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel
plating)
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working
days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working
days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for DL-A02 series , CE for all waterproof
connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can
pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally ,
and confirm the design firstly based on the sample that we send to
you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your
requirment .ODM are also welcomed . Our engineers have more than 10
years experience for waterproof connector industry . we provide our
best service for your refer.
![]() |
