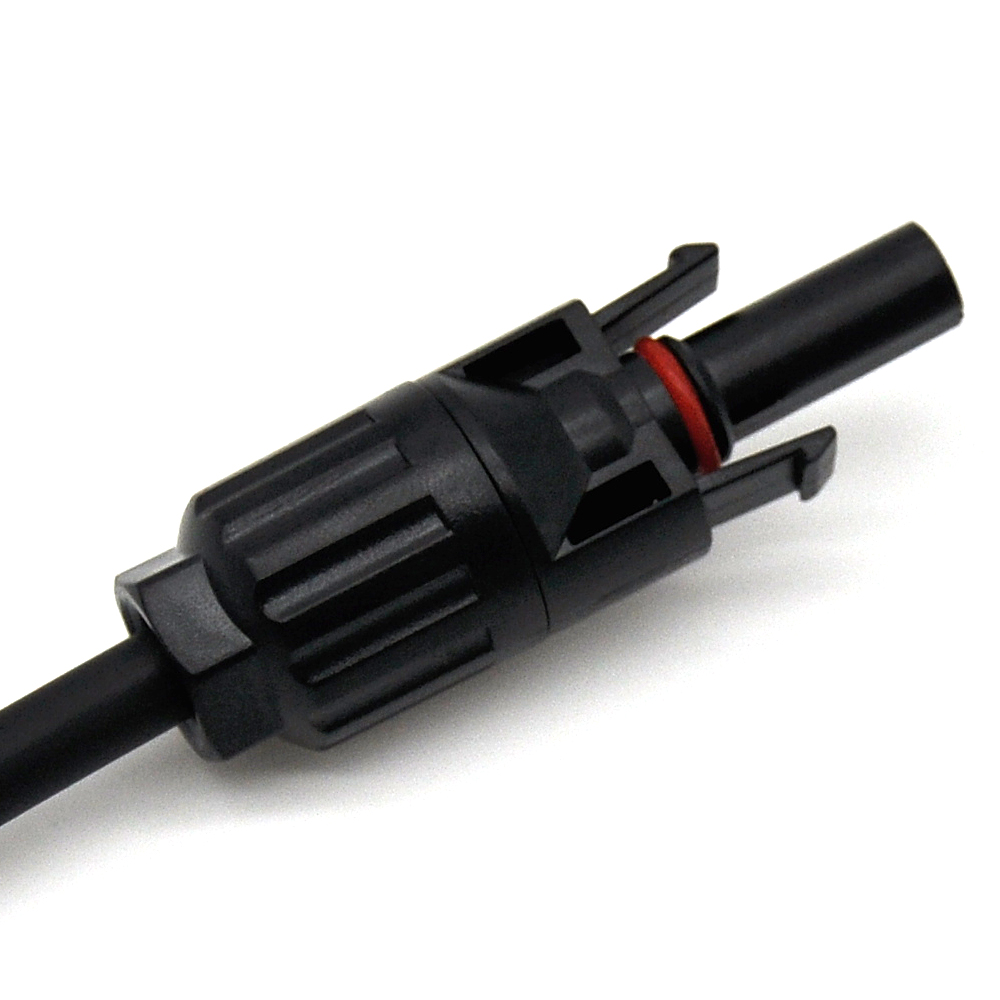

    TUV Approval Solar Panel 1000V DC Waterproof Cable Connector

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-S01
    Certification : UL/CE/CQC
    Price : Negotiable
    Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C
    Supply Ability : 100000pcs/month
    • Product Details
    • Company Profile

    TUV Approval Solar Panel 1000V DC Waterproof Cable Connector

    TUV Approval Solar Panel 1000V DC Waterproof Cable Connector


    Quick Detail Of Waterproof Cable Connectors

    Solar Panel connector is a connecting device for connecting solar panel circuits. It can connect various groups of circuits safely
    and quickly. It is dustproof, waterproof, anti-aging, UV resistant, light and easy to use, easy to install, safe and long-lasting.
    Life and other characteristics.
    The solar panel connector is self-locking and consists of the following components:
    1) Connector plastic body: the material used is PPO
    2) Waterproof colloid: the material used is silica gel
    3) Contact conductor: the material used is copper tin


    Specifications of Waterproof Cable Connectors

    Insulation MaterialsPPO
    Rated Current20A-30A
    Rated VoltageTUV 1000V DC / UL 600V DC
    Terminal MaterialCopper , Tin plating
    Contact Resistance<0.3mΩ
    Diameter of terminal holesØ4mm
    Compatible solar cable4.0/6.0mm² (12/10 AWG)
    Protection LevelIP67

    Application Of Waterproof Cable Connectors

    1. Outdoor LED Lighting

    2. Stage Light

    3. LED Lighting System


    Technical date

    Pins numberRated CurrentRated VoltageContact ResistanceInsulation ResistanceIP LevelCable SpecificationsCable Range
    28A250VAC10mΩ200MΩIP68<1.5mm20-9mm
    38A250VAC10mΩ200MΩIP68<1.5mm20-9mm

    Our Advantages

    1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

    2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

    3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.


    Application of Waterproof Cable Connectors
