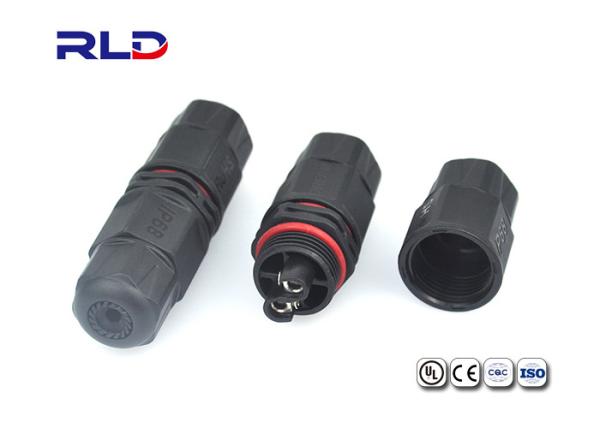

1. Screw threaded straight-through assembly, simple in using,
convenient in installation;
2. Brass plating nickel finish, high-strength corrosion resistance
and electrical conductivity could effectively response to the
temperature rise changes caused by the current;
3. Unique tablet design, the wire need no tin plating, then
crimping will be more reliable, and will not damage the copper wire
structure .
4. Nylon material, stable electrical performance, high-strength
resistance to pressure, anti-heat, antiexplosion, and corrosion;
5. Increases the design flexibility: the use of connectors gives
engineers greater flexibility in designing and integrating new
products, as well as in composing systems with components.
Other Parameters
Operating Temperature : -40℃~+105℃
Plug/Unplug durability : 1500times
Connection Mode : Screw Threaded
Parameters
| Pins Number | 2pin / 3pin |
| Rated Current | 20A |
| Rated Voltage | 250V AC |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 200MΩ |
| Protection Level | IP68 |
| Cable Specification | 1.5mm² |
| Cable Range | 6-10mm |
FAQ
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working
days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working
days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for DL-A02 series , CE for all waterproof
connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can
pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally ,
and confirm the design firstly based on the sample that we send to
you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your
requirment .ODM are also welcomed . Our engineers have more than 10
years experience for waterproof connector industry . we provide our
best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross
weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m
,5m , 10m , 50m , 100m and so on , will produce according to your
detailed requirement .
