    480V AC 7 Pin ANSI C136.4 Waterproof Led Connectors

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-E03
    Certification : UL/CE/CQC
    Price : Negotiable
    Payment Terms : Western Union, T/T,, MoneyGram,Paypal,, L/C
    Supply Ability : 100000pcs/month
    • Product Details
    • Company Profile

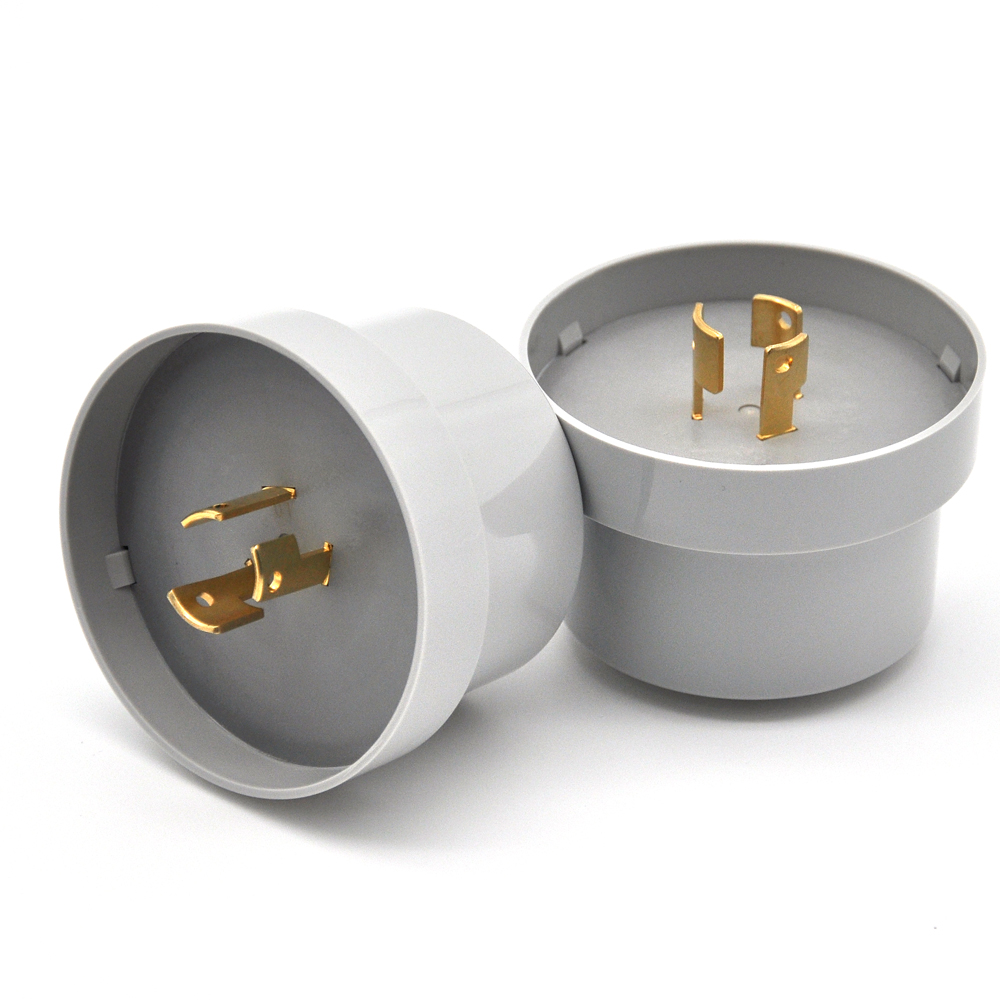

    480V AC 7 Pin ANSI C136.4 Waterproof Led Connectors

    480V AC 7 Pin ANSI C136.4 Waterproof Led Connectors


    Quick Detail Of Waterproof Led Connectors

    The instruction covers the application requirment of ANSI C136.41-2013 dimming receptacles used for road and area lighting . All contacts are pre-installed into the receptacle housing , and pre-crimped with 30CM lead wire , with 14AWG standard wire used on three-line voltage AC circuits and 18AWG wire used in four-way signal dimming control . Ambient temperature of the application is -40 to 70 degrees , suitable for outdoor lamps which require different temperature. There are 4 dimming contacts in the receptacle assembly.


    Specifications of Waterproof Led Connectors

    Product NameDR-E03
    Rated Voltage480V AC
    Rated FrequencyRated Frequency
    Rated Current15A
    Ambient Temp-40℃—+105℃
    Size80.5mm (diameter) × 51.6mm(Height)
    Shell DesignIt Confrms to American National Standard ANSI C136.41-2013
    Safety CertificationUL&CUL(E510435 , Vol 1)
    Service LifeQuality Assurance For Eight Years
    ApplicableParking lot lighting, street lights, courtyard lights, corridor lights, door lights and various LED lighting control switches

    Application Of Waterproof Led Connectors

    1. Outdoor LED Lighting

    2. Stage Light

    3. LED Lighting System


    Our Advantages

    1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

    2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

    3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.


    Application of Waterproof Cable Connectors
