Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type

    Buy cheap Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type from wholesalers

    Buy cheap Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type from wholesalers
    • Buy cheap Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type from wholesalers
    • Buy cheap Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type from wholesalers

    Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : M20
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 100000pieces/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

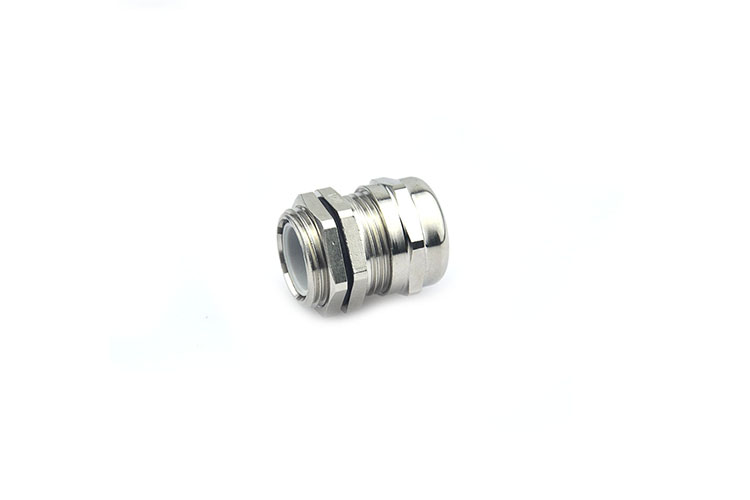

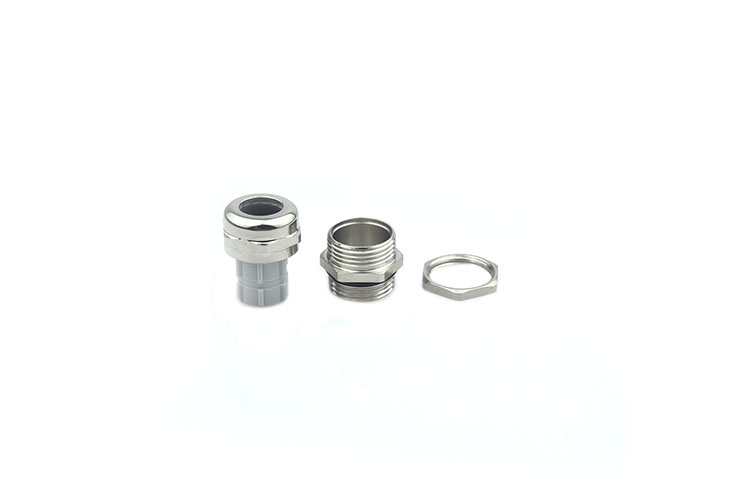

    Nickel Plated Brass Cable Glands Led Power Connector M20 IP68 Plug / Socket Type

    Nickel-Plated Brass Cable Glands Waterproof Led Connectors M20 IP68 Connector

    Parameters


    Thread AGCable range(mm)Thread Length(GLmm)Combined lengthSpanner size(mm)AGmm
    M12*1.53-6.5761416
    M16*1.54-8871918
    M18*1.55-10872120
    M20*1.56-1287.52222
    M22*1.510-1487.52424
    M24*1.511-15982725
    M25*1.512-16983027

    Nickel Plated Brass Cable Glands


    1. Material:Body:nickel-plated brass Seal:Polyamide 66,Sealing:NBR
    2. Protection degree: With the Clamping range,its protection degree can reach IP68.
    3. Properties:pass ROHS
    4. Temperature Range: Stat: Min. -40C,Max. 100C,Short-term 120C
    Dyn: Min. -20C,Max. 80C,Short-term 100C


    Package and Shipping
    inside: standard quantity in one plastic bag
    outside: some quantity in one papercarton
    customized packing also be available

    Questions & Answers


    Q1 : Can I have a sample for test ?

    Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .


    Q2 : How about the lead time ?

    Sample order need 3-5 working days , mess order need 15-20 working days .


    Q3 : Do you have certificates about the waterproof connectors ?

    Yes , we have got UL for T type series , CE for all waterproof connectors .


    Q4 : What payment can you accept ?

    We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .


    Q5 : Is that OK to print our Logo on your product and package ?

    Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .


    Q6 : Are you a factory ? Where is your factory ?

    Yes , we are a factory , we located in Shenzhen .


    Q7 : Do you accept OEM & ODM service ?

    Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.


    Q8 : How much does it cost to my country ?

    The freight will be given by fright company based on your Gross weight and CBM .


    Q9 : Can I order 100m cable for 1pc waterproof connector ?

    Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
