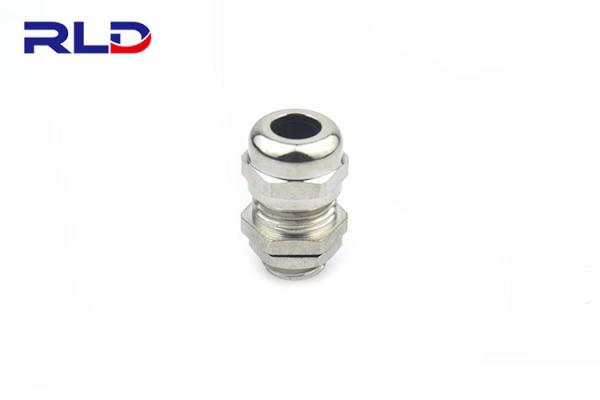

Thread: Metric, PG, G, NPT
Material: Nickel Plated Brass
Product certification: CE certification
Protection grade: Within the scope of provisions the cable range,
and use the o-ring screw tight head, can be IP68.
Product features: Special design of the clamping die and rubber
part, wide clamping range, strong stretching resistance, no damage
to cables and devices.
Parameters
| Thread specifications: | Metric thread, PG thread, G(PF) thread, and NPT thread. |

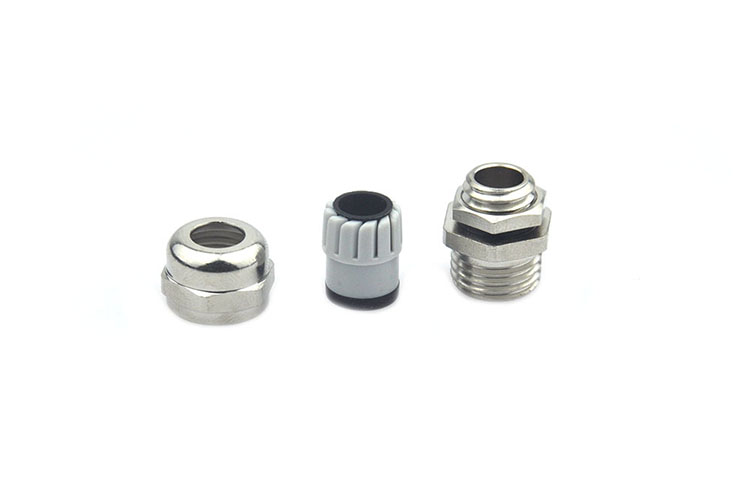

| Thread specifications: | A C F parts are made of excellent environmental protection brass
nickel- plated, D part of the gray nylon, B E part adopts the
nitrile butadiene rubber (NBR) |
| Product certification: | European CE certificate, European environmental ROHS, REACH
certificate, The United States UL certification, and
explosion-proof certification of the EX. |
| Working temperature: | Static:- 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃. |
| Product features: | Special clamping claw and the design of the clamping ring is
concave and convex clasped with forced tight head assembly
time-savers, cable clamping range is big, strong tensile
resistance, can waterproof, dustproof, salt resistance, resistance
to acid and alkali, alcohol, grease and common solvent. |
Questions & Answers
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working
days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working
days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for T type series , CE for all waterproof
connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can
pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally ,
and confirm the design firstly based on the sample that we send to
you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your
requirment .ODM are also welcomed . Our engineers have more than 10
years experience for waterproof connector industry . we provide our
best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross
weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m
,5m , 10m , 50m , 100m and so on , will produce according to your
detailed requirement .
