    20A 3pin Waterproof DC Plug Outdoor Lighting Electronic Connector

    Ask Lasest Price
    Brand Name : Realeader
    Model Number : DR-C05
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram , Paypal
    Supply Ability : 100000pieces/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

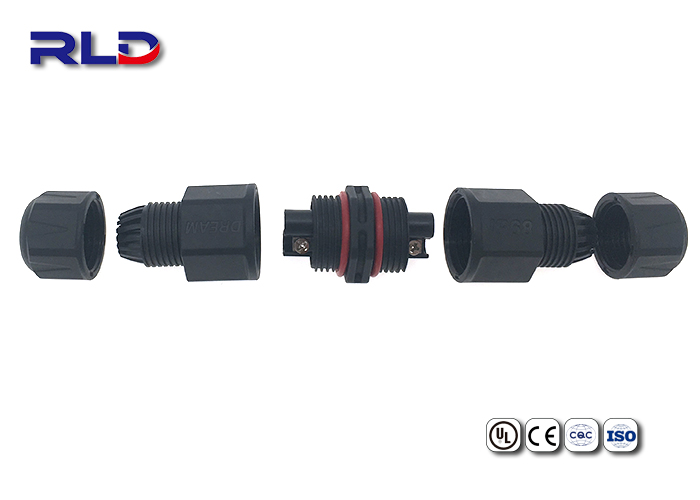

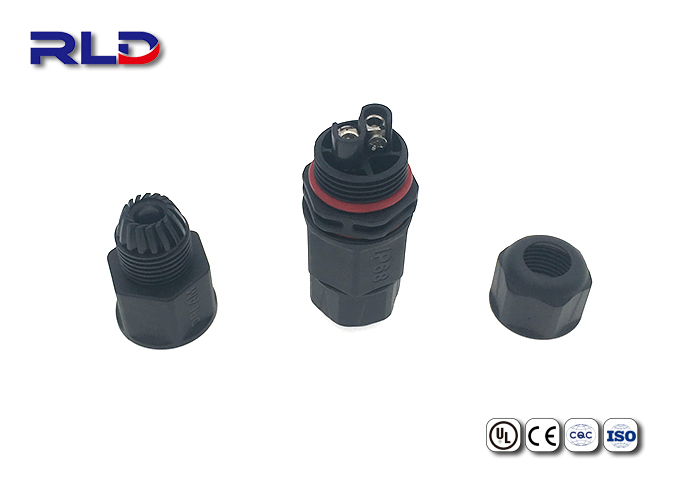

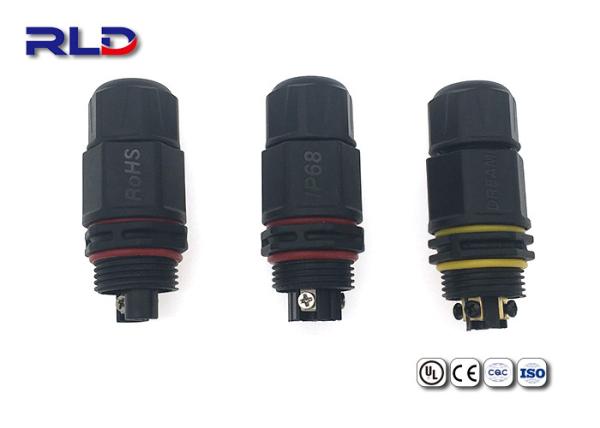

    20A 3pin Waterproof DC Plug Outdoor Lighting Electronic Connector

    20A 3pin Waterproof DC Plug Outdoor Lighting Electronic Connector

    Features

    1. Screw threaded straight-through assembly, simple in using, convenient in installation;
    2. Brass plating nickel finish, high-strength corrosion resistance and electrical conductivity could effectively response to the temperature rise changes caused by the current;
    3. Unique tablet design, the wire need no tin plating, then crimping will be more reliable, and will not damage the copper wire structure .
    4. Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, antiexplosion, and corrosion;
    5. Increases the design flexibility: the use of connectors gives engineers greater flexibility in designing and integrating new products, as well as in composing systems with components.


    Other Parameters

    Operating Temperature : -40℃~+105℃
    Plug/Unplug durability : 1500times
    Connection Mode : Screw Threaded

    Parameters


    Pins Number

    2pin / 3pin

    Rated Current

    20A

    Rated Voltage

    250V AC

    Contact Resistance

    10mΩ

    Insulation Resistance

    200MΩ

    Protection Level

    IP68

    Cable Specification

    1.5mm²

    Cable Range

    6-10mm




    FAQ

    Q1 : Can I have a sample for test ?
    Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .

    Q2 : How about the lead time ?
    Sample order need 3-5 working days , mess order need 15-20 working days .

    Q3 : Do you have certificates about the waterproof connectors ?
    Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .

    Q4 : What payment can you accept ?
    We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .

    Q5 : Is that OK to print our Logo on your product and package ?
    Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .

    Q6 : Are you a factory ? Where is your factory ?
    Yes , we are a factory , we located in Shenzhen .

    Q7 : Do you accept OEM & ODM service ?
    Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.

    Q8 : How much does it cost to my country ?
    The freight will be given by fright company based on your Gross weight and CBM .

    Q9 : Can I order 100m cable for 1pc waterproof connector ?
    Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
